Stubby Angled w/ Finger Stop (Picatinny) V1

Sick of paying ridiculous prices for a picatinny angled grip with a finger stop?

You've come to the right place.

Stubby Angled w/ Finger Stop (Picatinny) V1

Material: SLS Nylon 12

Total Height: 3.0-3.1 in

Height from Rail: 2.8 in

Length: 2.75 in

Angled 6 degrees

Mounting hardware and hex wrench included

Made of SLS Nylon 12

Instructions:

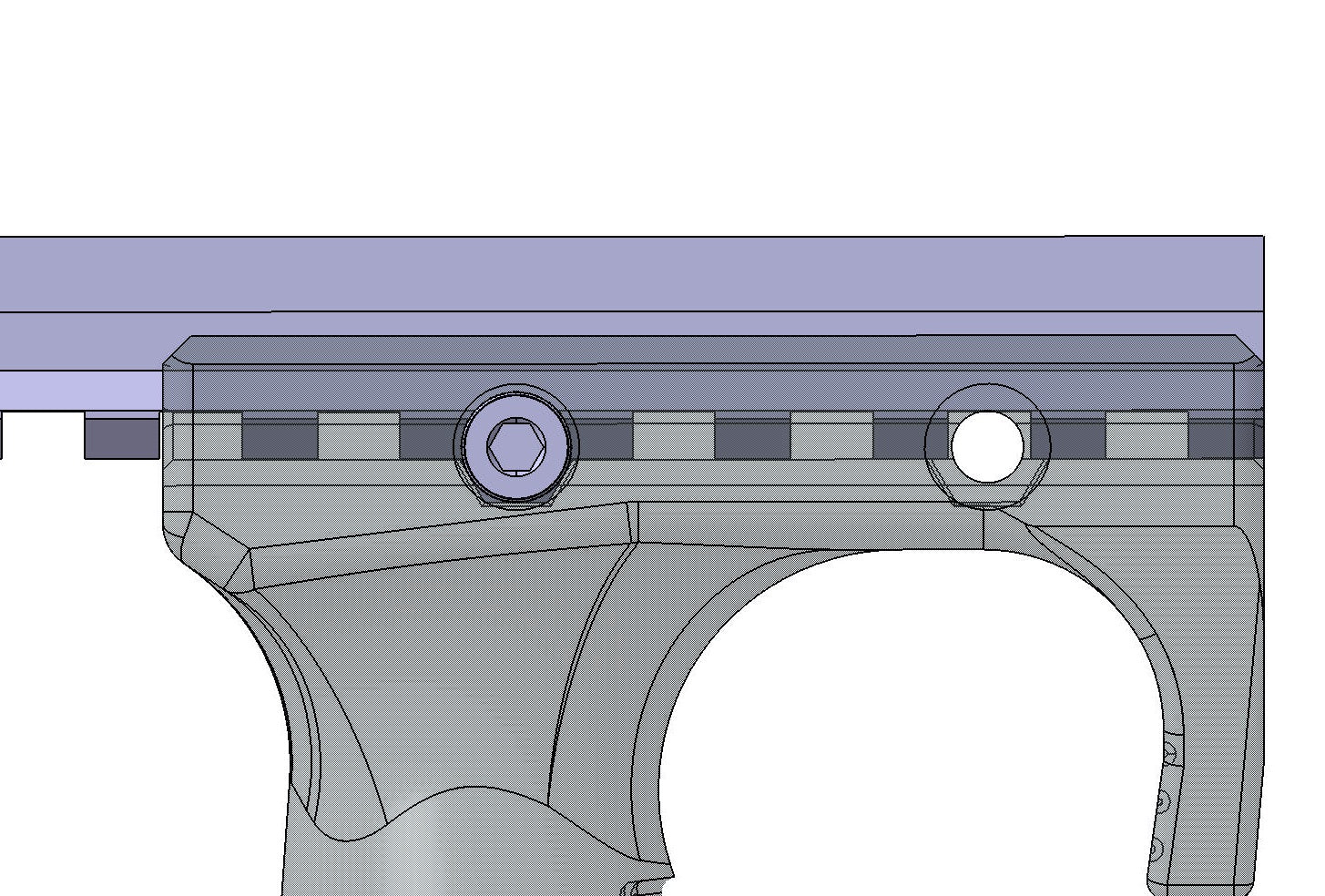

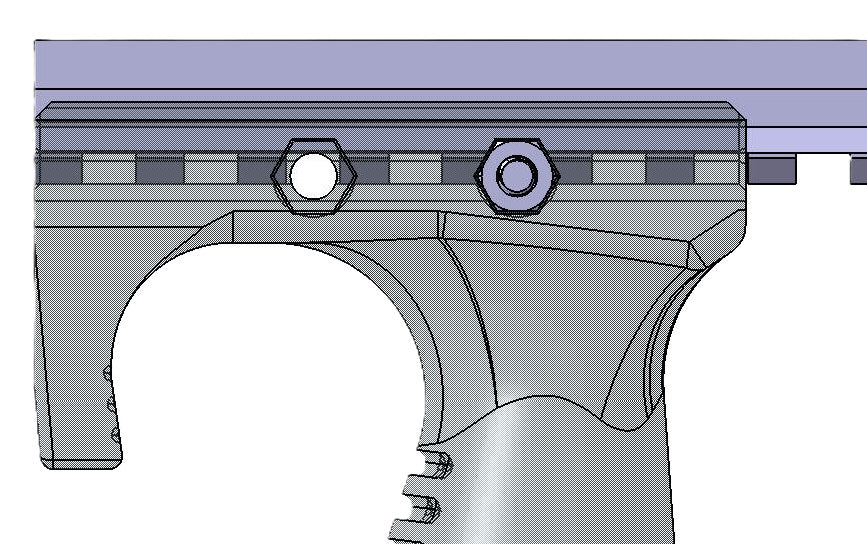

Your grip should come with Bolts, Washers, and Hex Nuts. Remove the Bolt and Washer (the nut will be loose at this point). Slide the grip through the picatinny rail and align the grip to where you want it. Install the Bolt, Washer, and Nut together. An additional washer is provided in the bag to be used as a shim in case the bolt sticks out too much.

Apologies for the instructions, but not every picatinny rail has the same width. As such, the washers are meant to be used as shims so that the bolt does not stick out of the grip.

Alumahyde Colors:

Alumahyde colored grips have been sprayed with Brownells Alumahyde and baked in an oven at 195 degress F for at least 3.5 hours. The inside of the grip may not be fully sprayed.

Dyed Colors (Black):

Due to dying process, shades of color may vary slightly across grips

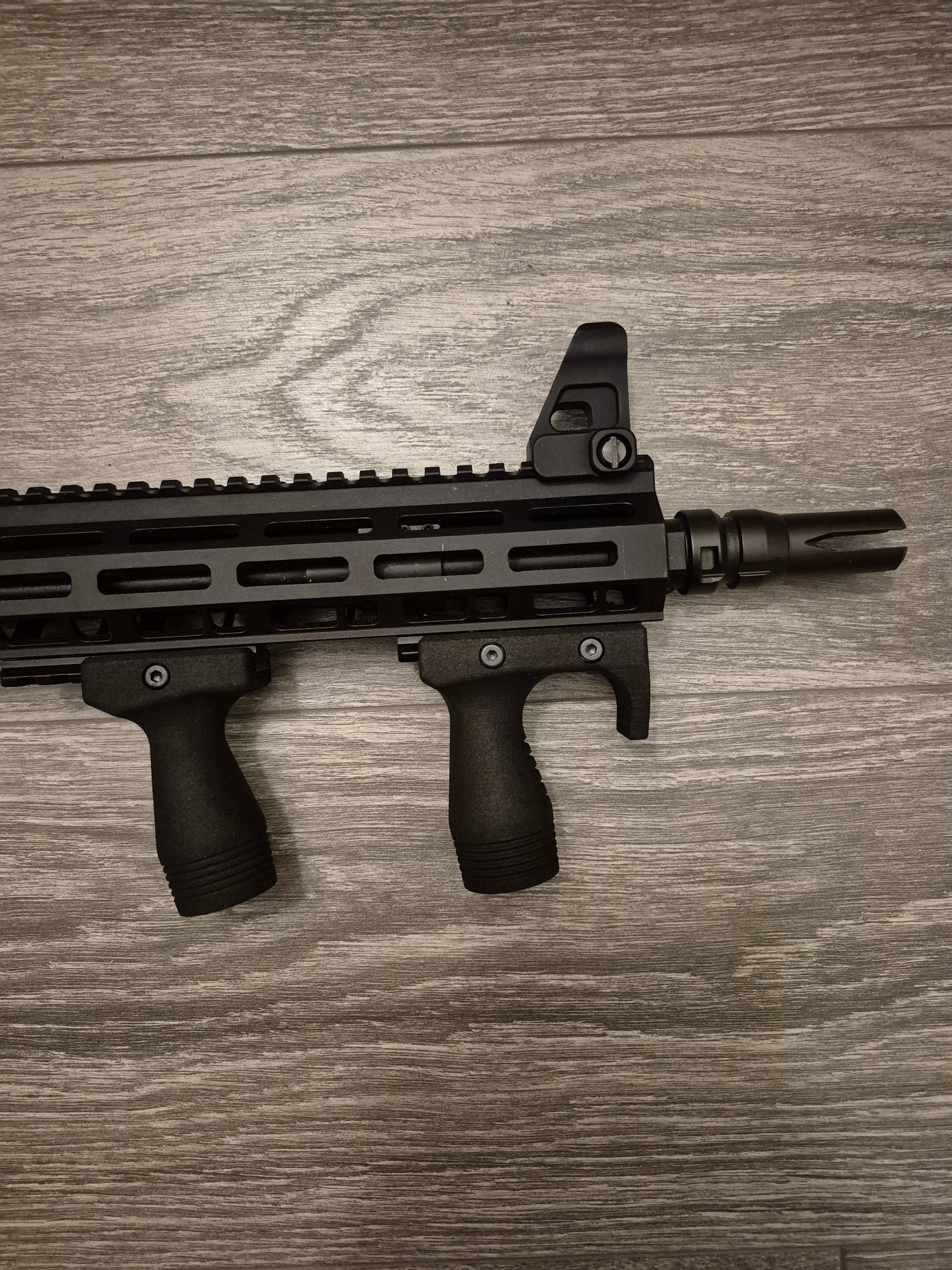

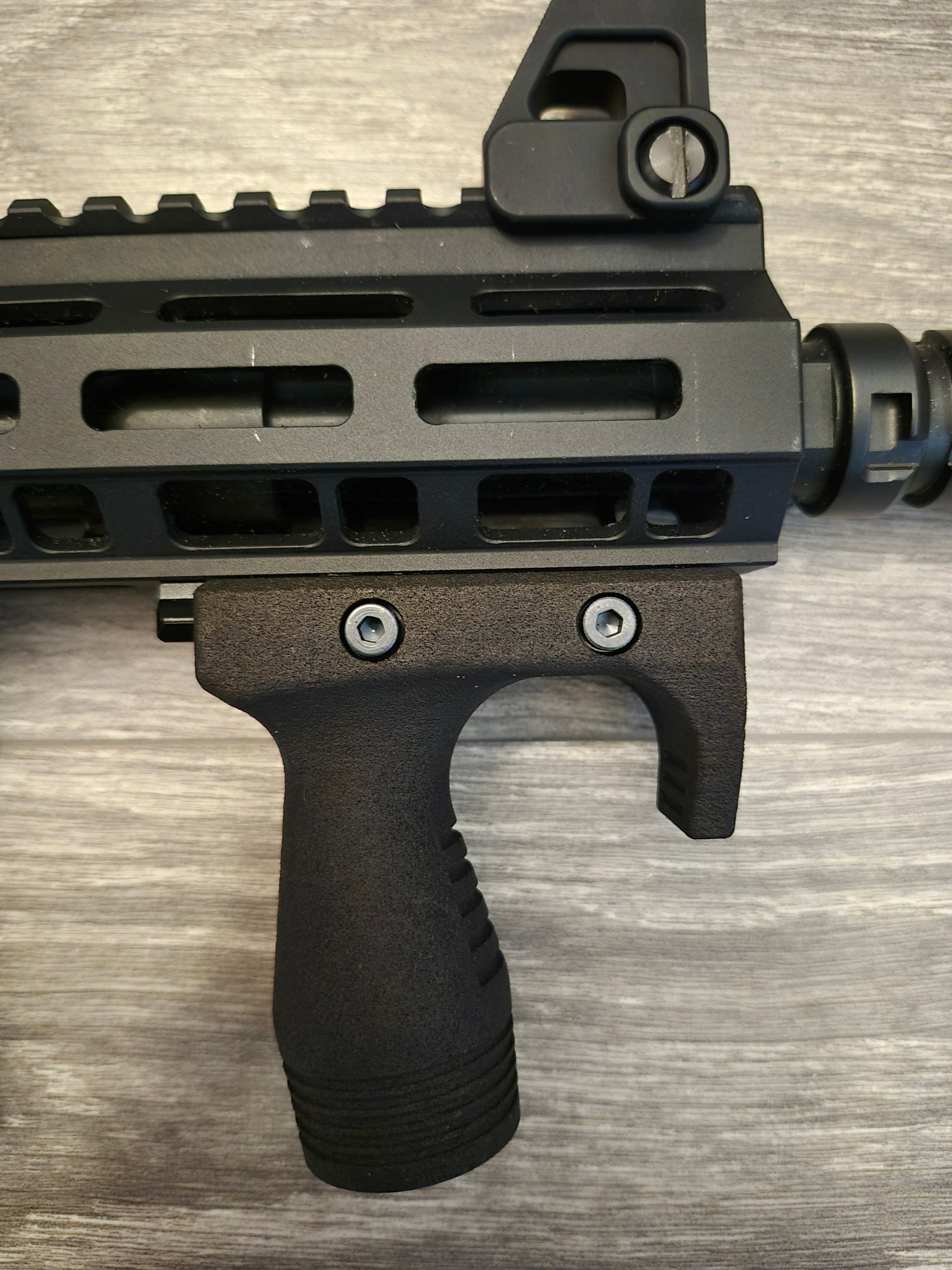

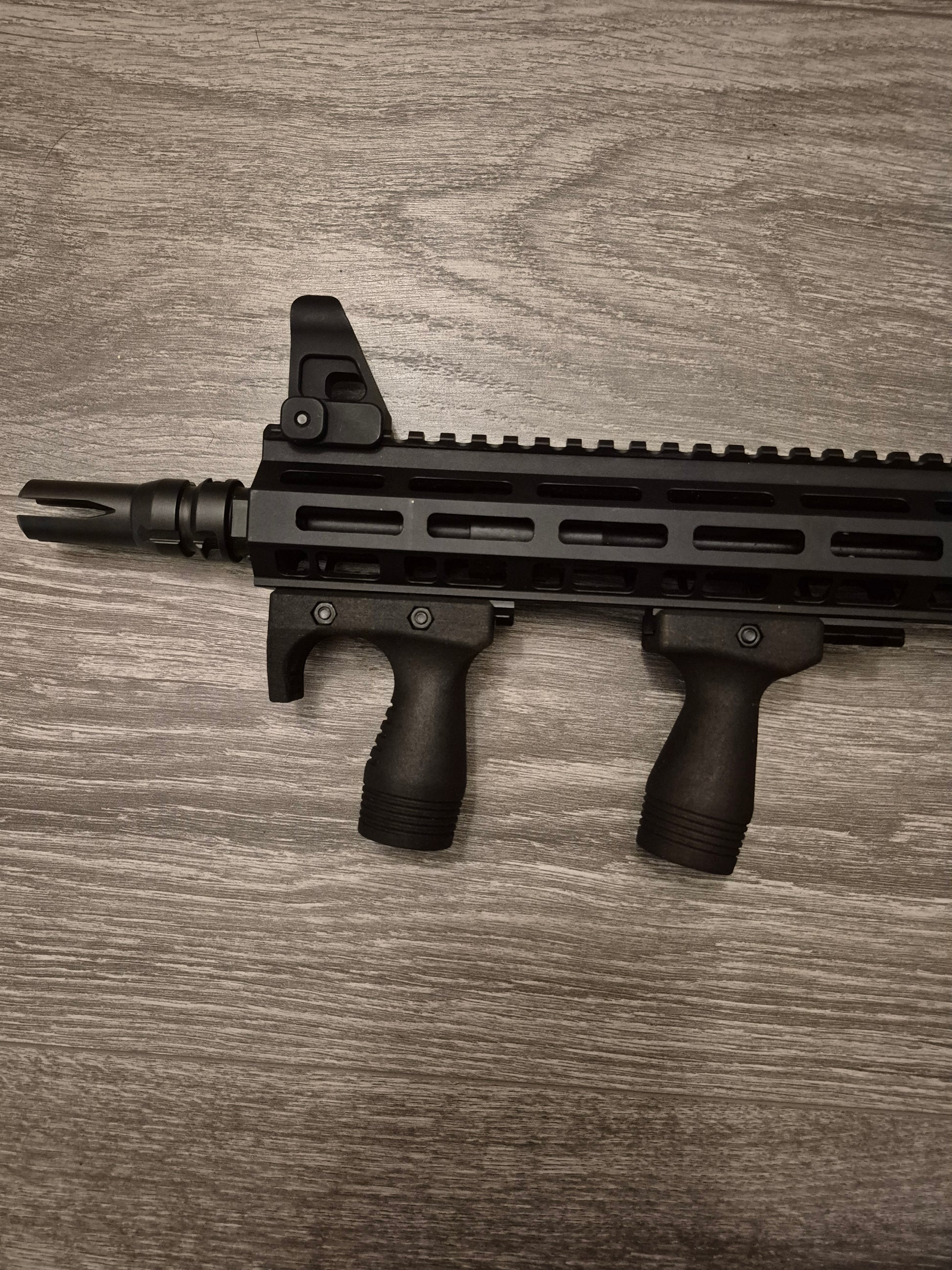

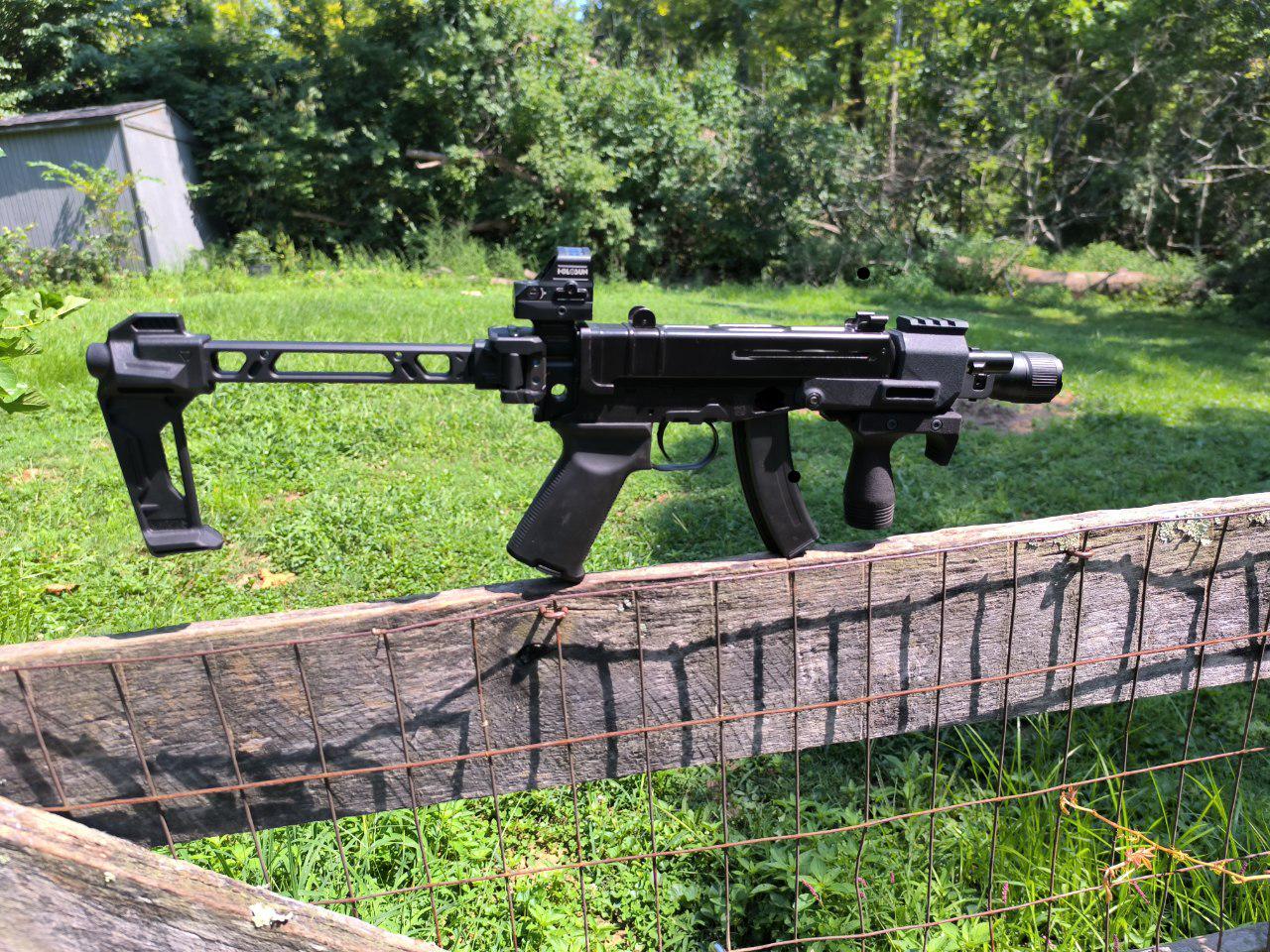

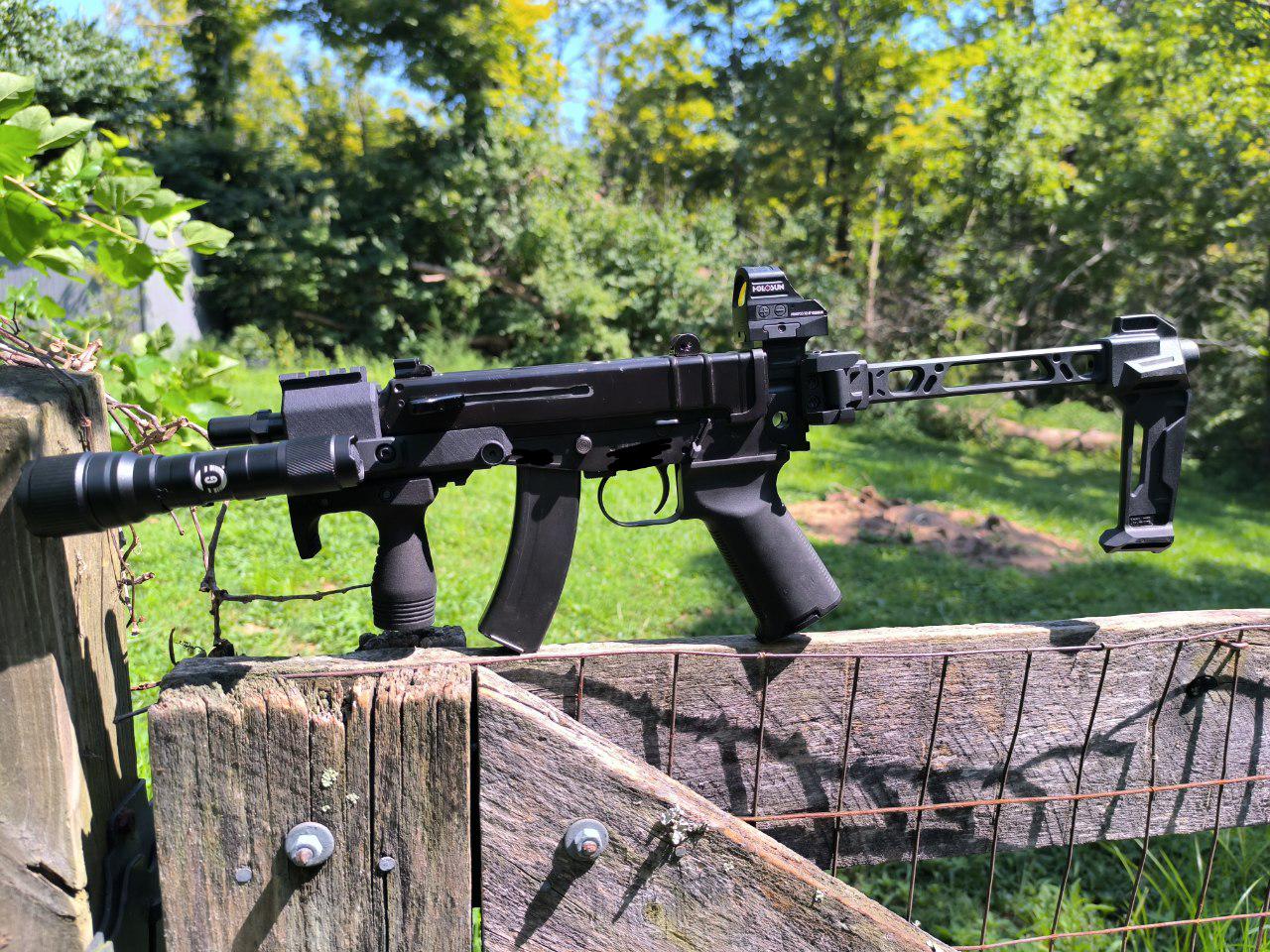

Note: Photos shown are anonymously submitted photos.
